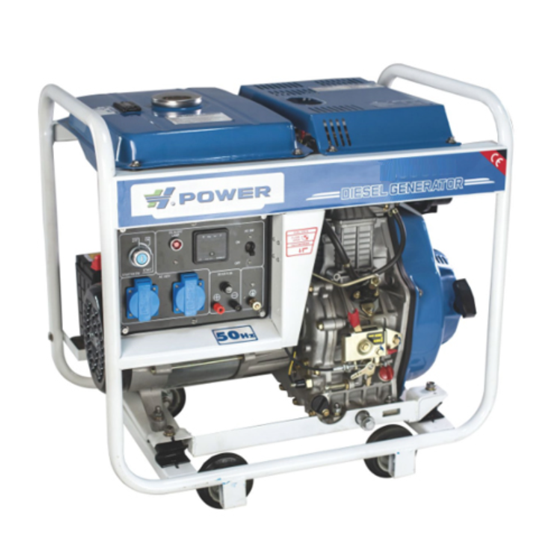

HP7500CX(E)

 Main Features
Type
HP7500CX(E)
Alternator
Rated frequency(HZ)
50
60
Rated output(KW)
5.2
5.7
Max output(KW)
5.7
6.2
Rated voltage(V)

380/400/415

Power factor(cosφ)
1.0/0.8
Engine
Mode
188F(E)
Type
air cooled,single cylinder,vertical,4-stroke
Starting fashion
manual or Elec.
Fuel tank capacity(L)
12.5
Gen. Set
Continuous running time(h)
6.5
5.5
N.W./G.W.(kg)
100/105
Dimension:LxWxH(mm)
720x480x585mm

Carton size: LxWxH(mm)

740x510x650mm
Load quantity
99pcs/20GP
 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
