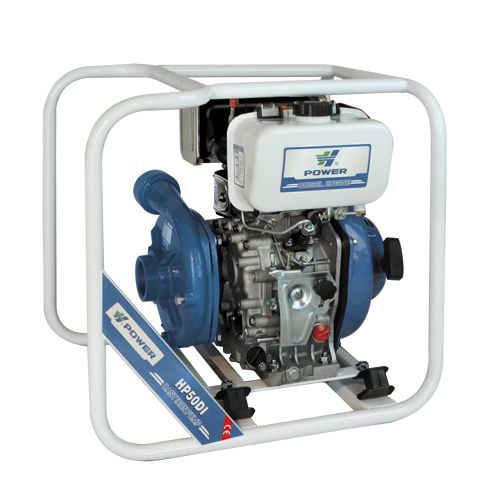

HP50DI(E)

 Main Features

Type

HP50DI(E)

HP80DI(E)

Pump

Model

2〞

3〞

Rated head(m)

63

66

Max.suction head(m)

8

8

Rated capacity(m3/h)

28

39

Self-priming time(s/4m)

80

120

Engine

Mode

HP178F(E)

HP186F

Type

Single cylinder、4-stroke、air-cooled、vertical、disel engine

Starting fashion

Manual or electric start

Fuel tank capacity(L)

3.5

5.5

Pump   set

Continuous running time(h)

2

2

N.W/G.W(kg)

56/59

75/78

Dimension L×W×H(mm)

570×450×550

645×470×600

Package size L×W×H(mm)

580×460×570

655×480×615

 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
