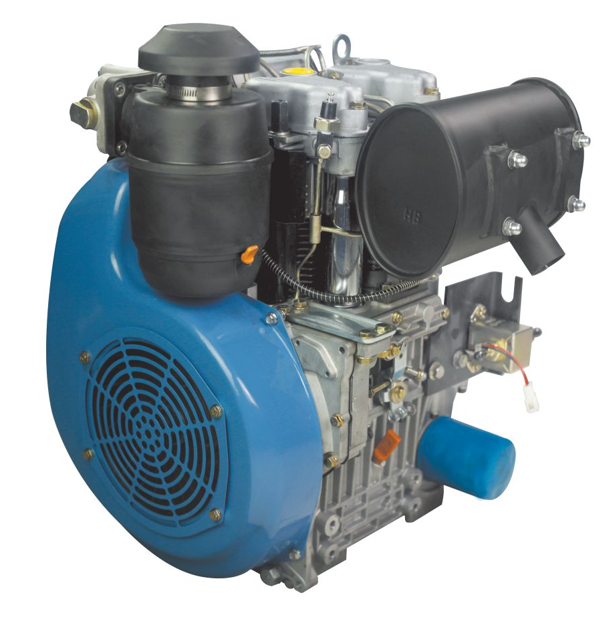

HP2V86FE

 Main Features
Model
HP2V86FE
HPEV80
Type
V-twin、4-stroke、 air-cooled 、diesel engine
V-twin、4-stroke、 air-cooled 、diesel engine
Bore x stroke(mm)
2-86x72
2-80x79
Displacement(mi)
836
794
Compression Ratio
20:1
20:1
Rated speed(rpm)
3000
3600
3000
3600
Rated output(KW)
11.0
12.0
12.0
14.0
MAX.output(KW)
12.0
13.2
13.2
15.4
Fuel consumption(g/KW.h)
285 320 285 320
Starting fashion
Electric Start
Electric Start
Fuel tank capacity(L)
/
/
Oil capacity( L)
1.7
2.3
Fuel type
0#(Summer)、-10#(Winter)diesel
0#(Summer)、-10#(Winter)diesel
Oil type
10W/30SAE
10W/30SAE
Continuous running time(h)
6.5
6
6.5
6
Dimension LxWxH(mm)
555x391x459
616x486x528
N.W./G.W.(kg)
59/75
58/68
 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
