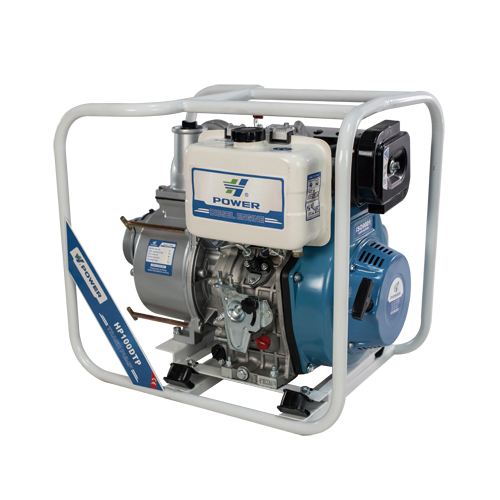

HP100DTP

 Main Features
Type HP80DTP HP100DTP
Pump Inch 3'' 4''
Rated head(m) 26 20
Max.suction head(m) 8 5
Rated capacity(m³/h) 13 70
Self-priming time(s/4m) 40 40
Engine Mode HP178F(E) HP186FA(E)
Type 4-stroke、air-cooled、diesel engine 4-stroke、air-cooled、OHV、gasoline engine
Starting fashion Manual or electric start Manual or electric start
Fuel tank capacity(L) 3.5 3.5
Pump Set Continuous running time(h) 3.0 2.0
N.W./G.W.(kg) 50/53 69/72
Dimension L×W×H(mm) 560×450×660 645×470×600
Package Size L×W×H(mm) 575×470×680 665×480×615
 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
