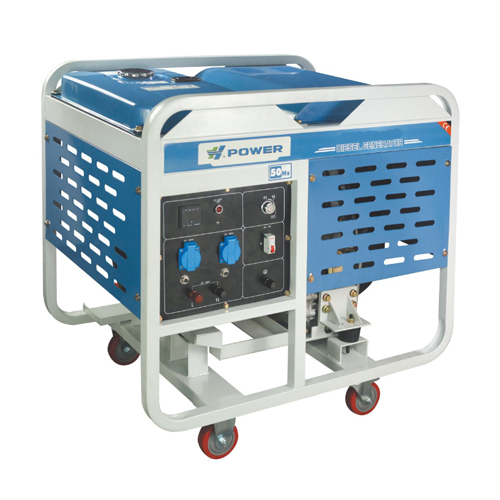

HP12000CX(E)

 Main Features
Model
HP12000CXE
Alternator
Frequency(Hz)
50/60
Rated power(KVA)
9.0/10
Max.Power(KVA)
10/11
Voltage(AC)(V)
220/380,230/400,380/400/415
Engine speed(rpm)
3000/3600
Power factor
cosф=1.0
Engine
Engine model
HP2V86FE
Type
Double-cylinder,vertical,4-stroke,direct
injection,air-cooled diesel engine
Continuous outpput(KVA)
11.5/13
Bore×stroke(mm)
86×70
Displacement(L)
0.812
Fuel tank capacity(L)
18
Lube-oil capacity(L)
1.7
Generator Set
Starting system
Electric start
Dry weight(kg)
170
Dimensions(L×W×H)(mm)
850×630×880
 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
