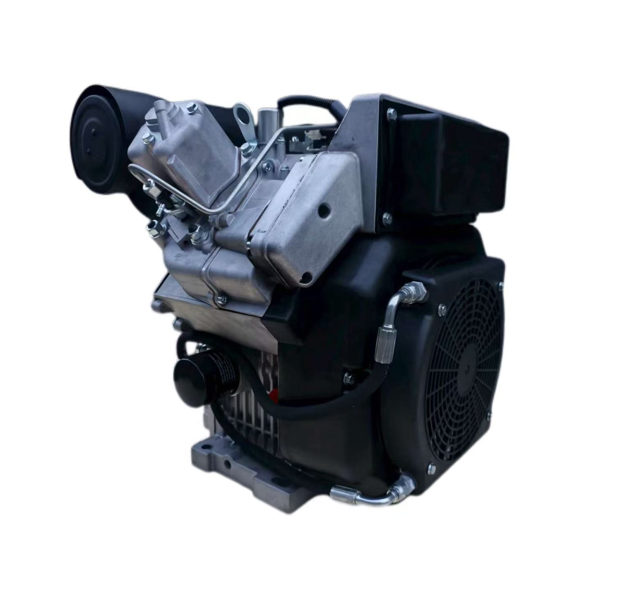

HP2V88

 Main Features
Model HP2V88F
Type V-twin、4-stroke、Air-cooled、Diesel engine
Bore × stroke(mm) 2-88*79
Displacement(ml) 961.0
Compression ratio 19:1
Rated speed(rpm) 3000.0 3600.0
Rated output(kw) 12.0 13.0
Fuel consumption(G/kw ·h) ≤260 ≤270
Starting fashion Electric Start
Lubrication modes Splash and Forced
Oil capacity(L) 2.8
Fuel type 0#(Summer)、 -10#(Winter)diesel
Oil type SAE10W30(CD grade or above)
Dimension L×W×H(mm) 585*565*665(with fuel tank)585*565*520(without fuel tank)
610*610*770(with fuel tank)610*610*620(without fuel tank)
N.W. (kg) 82.0
 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
