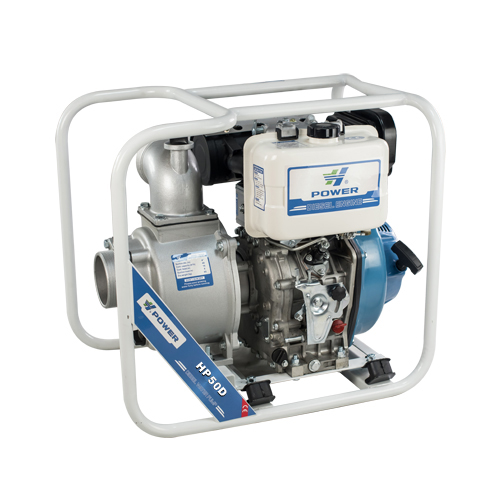

HP50D(E)

 Main Features
Type HP50D(E) HP80D(E) HP100D(E)
Pump Inch 2'' 3'' 4''
Rated head(m) 15 13 16
Max.suction head(m) 8 8 8
Rated capacity(m³/h) 22 30 40
Self-priming time(s/4m) 80 120 180
Engine Mode HP170F(E) HP178(E) HP186F(E)
Type Single cylinder、4-stroke、air-cooled、vertical、diesel engine
Starting fashion Manual or electric start
Fuel tank capacity(L) 2.5 3.5 5.5
Pump Set Continuous running time(h) 2.5 2.0 2.0
N.W./G.W.(kg) 35/38 52/55 69/72
Dimension L×W×H(mm) 490×410×510 570×450×550 645×470×600
Package Size L×W×H(mm) 500×420×525 580×460×570 665×480×615
 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
