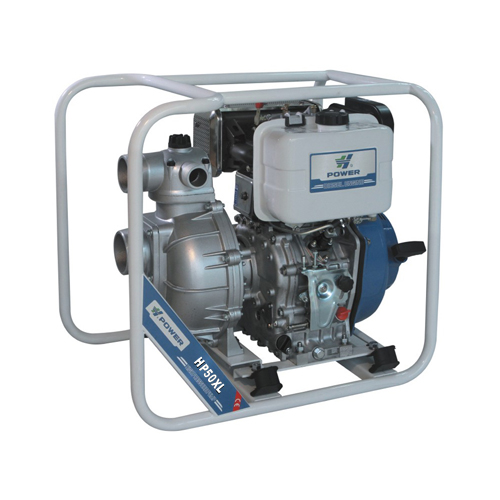

HP50XL(E)

 Main Features
Type HP40XL(E) HP50XL(E) HP80XL(E)
Pump Inch 1.5'' 2'' 3''
Rated head(m) 60 55 80
Max.suction head(m) 8 8 8
Rated capacity(m³/h) 18 30 40
Self-priming time(s/4m) 30 30 30
Engine Mode HP178F(E) HP178F(E) HP186FA(E)
Type Single cylinder、4-stroke、air-cooled、vertical、diesel engine
Starting fashion Manual or electric start
Fuel tank capacity(L) 3.5 3.5 5.5
Pump Set Continuous running time(h) 3.0 2.0 2.0
N.W./G.W.(kg) 50/53 52/55 69/72
Dimension L×W×H(mm) 570×460×550 570×460×550 640×470×600
Package Size L×W×H(mm) 580×470×570 580×470×570 655×480×615
 Download



We have passed certification of ISO9001:2000 quality management system. Our products of generator sets , construction machines have been certificated by EPA, CARB,2004/26/EC, and CE. It enables the selling in different markets expediently and simply.
